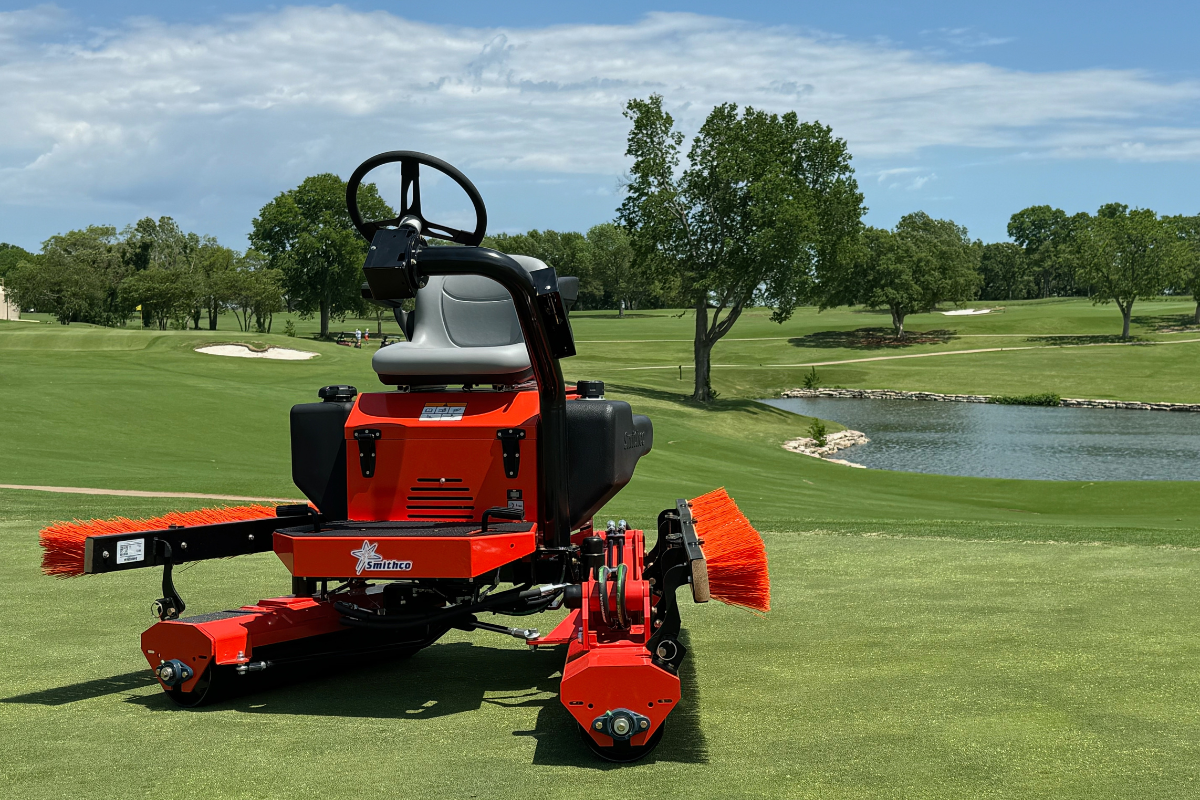

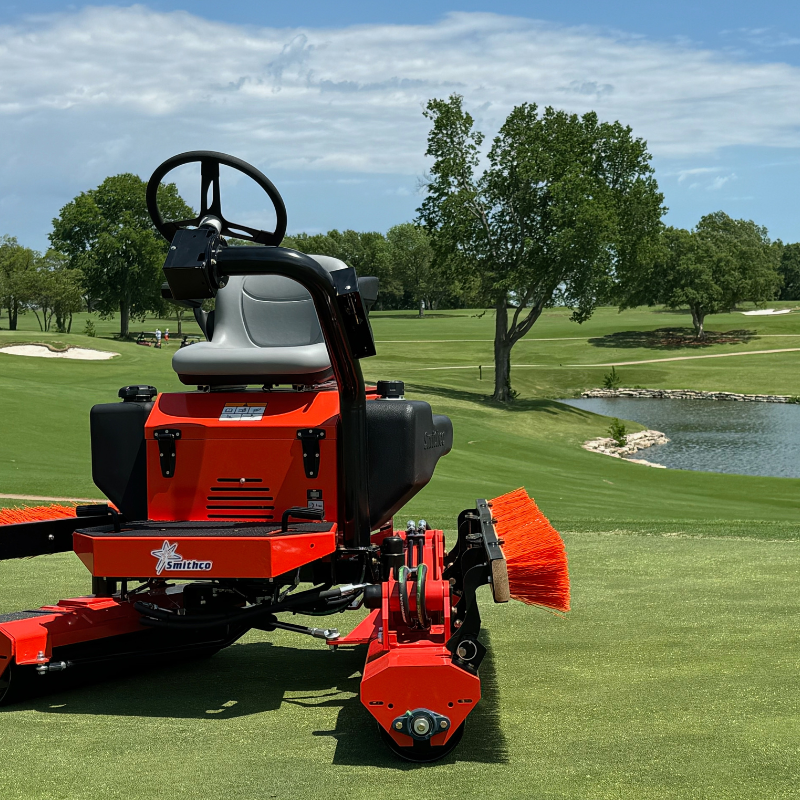

Tournament Ultra 7090 Greensroller
The Tournament Ultra 7090 Greensroller by Smithco is your trusty sidekick in maintaining pristine golf course greens. Its Briggs & Stratton 16-hp Vanguard V-twin gasoline engine provides robust performance, while the hydrostatic drive system and hydraulic power steering offer smooth operation and superior control. With an impressive 36-in rolling width, turf maintenance becomes efficient and time-saving. The high-capacity fuel tank promotes longer operation hours, making the Greensroller 7090 a symbol of power, efficiency, and precision.
Accessories
Light Kit
LED Light package front and rear for gas and diesel engines models
Greens Spiker Attachment
Ball Hitch
Brush Attachment Kit
Brush attachment for 72" (189 cm) & 84" (213 cm) Tournament Rake and 72" (189 cm) & 84" (213 cm) Pro Rake
Find Your Dealer
Our global network of dealers spans over 62 countries. No matter where you are located, a Smithco dealer will help you find exactly what you need for your turf.
Specifications
Engine
Air Cleaner
Engine mounted Engine mounted
Engine
Battery
12 v 12 v
Tires, Brakes, & Steering
Braking
Dynamic through hydrostatic drive system Dynamic through hydrostatic drive system
Product Configuration
Configuration
Gas powered, equipped with hydrostatic direct dual-drive system for superior traction and safety Gas powered, equipped with hydrostatic direct dual-drive system for superior traction and safety
Rollers
Construction
Heavy gauge square steel tubing main frame, hydraulically formed, electrically welded Heavy gauge square steel tubing main frame, hydraulically formed, electrically welded
Rollers
Controls
Keyed ignition switch, engine throttle, choke at the operator’s station; Dual drive pedals control left / right operation and rolling speed; Pedals connected to hydraulic pump via fully sealed push / pull cable system Keyed ignition switch, engine throttle, choke at the operator’s station; Dual drive pedals control left / right operation and rolling speed; Pedals connected to hydraulic pump via fully sealed push / pull cable system
Engine
Drive System
Hydrostatic using a 1 in³ hydraulic pump driving three hydraulic motors direct coupled to each roller cylinder; Direct drive motors eliminate maintenance, hydraulic drive to all rollers provides superior traction in all turf and terrain conditions Hydrostatic using a 16 cc hydraulic pump driving three hydraulic motors direct coupled to each roller cylinder; Direct drive motors eliminate maintenance, hydraulic drive to all rollers provides superior traction in all turf and terrain conditions
Rollers
Electrical System
12 v, electric start to engine 12 v, electric start to engine
Engine
Engine Type
16 hp Vanguard Gasoline Engine 16 hp Vanguard Gasoline Engine
Engine
Fuel Capacity
5 gal gas tank 18.9 l gas tank
Rollers
Ground Pressure
3.86 psi 3.86 psi
Weights & Dimensions
Height
49 in 1.2 m
Engine
Ignition
Electronic Electronic
Weights & Dimensions
Length
44 in 1.1 m
Engine
Lubrication
Full pressurized Full pressurized
Engine
Oil Tank Capacity
5 gal tank, 3 gal capacity 18.9 l tank, 11.4 gal capacity
Engine
Rated Horsepower
16 hp 11.9 kw
Rollers
Rollers
Two oscillating 8 in diameter x 36 in length, seamless, drawn over mandrel steel tubes; Beveled on both ends with roller scrapers; Bolted hubs with bearings on each end of both rollers Two oscillating 20.3 cm diameter x 91 cm length, seamless, drawn over mandrel steel tubes; Beveled on both ends with roller scrapers; Bolted hubs with bearings on each end of both rollers
Product Configuration
Safety
Dual drive roller system for superior traction and safe operation in all turf and terrain conditions; Dynamic braking thru hydrostatic drive system Dual drive roller system for superior traction and safe operation in all turf and terrain conditions; Dynamic braking thru hydrostatic drive system
Product Configuration
Seat
High back, one piece for operator comfort High back, one piece for operator comfort
Speed & Sound
Sound Level
72 dba 72 dba
Speed & Sound
Speed
0-9 mph 0-14.5 kph
Transport Trailer
Trailer Description
Low profile design with drop axle; Extra wide metal bed and tailgate fitted with rubber matting for traction and centering guide system for easy load/unload of the roller Low profile design with drop axle; Extra wide metal bed and tailgate fitted with rubber matting for traction and centering guide system for easy load/unload of the roller
Transport Trailer
Trailer Drawbar
Adjustable from 44-47 in Adjustable from 1.1-1.2 m
Transport Trailer
Trailer Tires
18-9.5x8 pneumatic 18-9.5x8 pneumatic
Speed & Sound
Transport
0-10 mph 0-16 kph
Transport Trailer
Transport Trailer Length
47 in (tailgate up, not including drawbar) 1.2 m (tailgate up, not including drawbar)
Transport Trailer
Transport Trailer Weight
240 lbs 528 kg
Transport Trailer
Transport Trailer Width
56 in 1.4 m
Warranty
Warranty
Smithco two (2) year limited warranty; Vanguard three (3) year engine manufacturer warranty Smithco two (2) year limited warranty; Vanguard three (3) year engine manufacturer warranty
Weights & Dimensions
Weight
845 lbs 383.3 kg
Weights & Dimensions
Width
49 in 1.2 m
