Tournament XL 7000 Ultra Wide

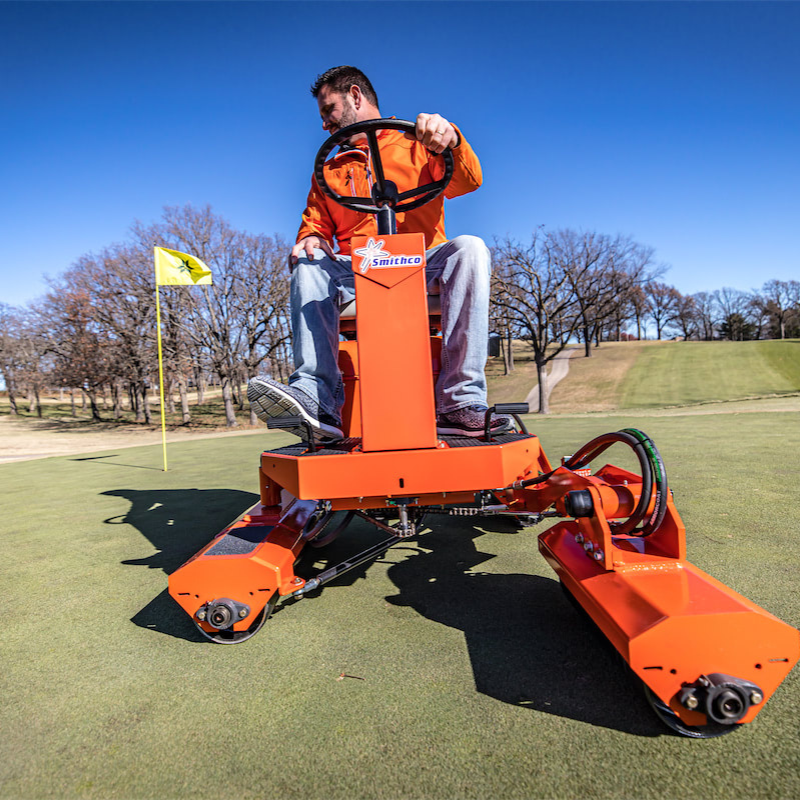

Power meets precision in the Smithco Tournament Ultra Wide XL 7000 Greensroller. Fueled by a Briggs & Stratton 16 hp (11.9 kw) Vanguard V-twin gasoline engine, this greensroller showcases an exceptional combination of durability and superior performance. Its flexible roller frame effortlessly adapts to terrain variations, while the extra-wide rolling width significantly reduces maintenance time.
Accessories
Ball Hitch
Find Your Dealer
Our global network of dealers spans over 62 countries. No matter where you are located, a Smithco dealer will help you find exactly what you need for your turf.
Specifications
Engine
Air Cleaner
Engine mounted Engine mounted
Engine
Battery
12 v 12 v
Tires, Brakes, & Steering
Braking
Dynamic through hydrostatic drive system Dynamic through hydrostatic drive system
Product Configuration
Configuration
Gas powered, equipped with hydrostatic direct dual-drive system for superior traction and safety Gas powered, equipped with hydrostatic direct dual-drive system for superior traction and safety
Rollers
Construction
Heavy gauge square steel tubing main frame, hydraulically formed, electrically welded Heavy gauge square steel tubing main frame, hydraulically formed, electrically welded
Rollers
Controls
Keyed ignition switch, engine throttle, choke at the operator’s station; Dual drive pedals control left / right operation and rolling speed; Pedals connected to hydraulic pump via fully sealed push / pull cable system Keyed ignition switch, engine throttle, choke at the operator’s station; Dual drive pedals control left / right operation and rolling speed; Pedals connected to hydraulic pump via fully sealed push / pull cable system
Engine
Drive System
Hydrostatic using a 1 in³ hydraulic pump driving three hydraulic motors direct coupled to each roller cylinder; Direct drive motors eliminate maintenance, hydraulic drive to all rollers provides superior traction in all turf and terrain conditions Hydrostatic using a 16 cc hydraulic pump driving three hydraulic motors direct coupled to each roller cylinder; Direct drive motors eliminate maintenance, hydraulic drive to all rollers provides superior traction in all turf and terrain conditions
Rollers
Electrical System
12 v, electric start to engine 12 v, electric start to engine
Engine
Engine Cooling
Air cooled Air cooled
Engine
Engine Type
Briggs Vanguard gasoline engine Briggs Vanguard gasoline engine
Engine
Fuel Capacity
5 gal gas tank 18.9 l gas tank
Rollers
Ground Pressure
3.8 psi 0.3 bar
Engine
Ignition
Electronic Electronic
Weights & Dimensions
Length
48 in 1.2 m
Engine
Lubrication
Full pressurized Full pressurized
Engine
Oil Tank Capacity
5 gal tank, 3 gal capacity 18.9 l tank, 11.4 gal capacity
Engine
Rated Horsepower
16 hp 11.9 kw
Rollers
Rollers
(2) 8 in diameter x 19 in length and (1) 8 in diameter x 36 in seamless drawn over mandrel steel tubes; Beveled on both ends with roller scrapers; Bolted hubs with bearings on each end of both rollers (2) 20.3 cm diameter x 48.3 cm length and (1) 20.3 cm diameter x 91.4 cm seamless drawn over mandrel steel tubes; Beveled on both ends with roller scrapers; Bolted hubs with bearings on each end of both rollers
Product Configuration
Safety
Triple drive roller system for superior traction and safe operation in all turf and terrain conditions; Dynamic braking thru hydrostat drive system Triple drive roller system for superior traction and safe operation in all turf and terrain conditions; Dynamic braking thru hydrostat drive system
Product Configuration
Seat
High back, one piece for operator comfort High back, one piece for operator comfort
Speed & Sound
Sound Level
72 dba 72 dba
Speed & Sound
Speed
0-9 mph 0-14.5 kph
Tires, Brakes, & Steering
Steering
10:2 reduction; 16 in soft grip steering wheel with tilt; 10 in diameter turning radius; Hydraulic power steering 10:2 reduction; 40.6 cm soft grip steering wheel with tilt; 25.4 cm diameter turning radius; Hydraulic power steering
Transport Trailer
Trailer Description
Low profile design with drop axle; Extra wide metal bed and tailgate fitted with rubber matting for traction and centering guide system for easy load/unload of the roller Low profile design with drop axle; Extra wide metal bed and tailgate fitted with rubber matting for traction and centering guide system for easy load/unload of the roller
Transport Trailer
Trailer Drawbar
Adjustable from 44-47 in Adjustable from 1.1-1.2 m
Transport Trailer
Trailer Tires
18-9.5x8 pneumatic 18-9.5x8 pneumatic
Speed & Sound
Transport
0-10 mph 0-16 kph
Transport Trailer
Transport Trailer Length
47 in (tailgate up, not including drawbar) 1.2 m (tailgate up, not including drawbar)
Transport Trailer
Transport Trailer Weight
240 lbs 528 kg
Transport Trailer
Transport Trailer Width
56 in 1.4 m
Warranty
Warranty
Smithco two (2) year limited warranty Briggs & Stratton two (2) year engine manufacturer warranty Smithco two (2) year limited warranty Briggs & Stratton two (2) year engine manufacturer warranty
Weights & Dimensions
Weight
905 lbs 410.5 kg
Weights & Dimensions
Width
73 in 1.9 m
