Sand Star Hydraulic Series

Perfectly Balanced

Smithco's drive system on 3 wheel drive models makes for superior traction and increased stability.

Choice of 4 models

in both 2 and 3 wheel drive, offering 16 or 18 hp gasoline engines and 19 hp diesel.

More Implements

Widest range of implements for grooming.

Find your dealer today

Sand Star (Prime Movers)

Sand Star (Prime Movers)

IMPERIAL
METRIC
Sand Star I
16 hp Vanguard twin-cylinder gasoline engine, 2 wheel hydraulic parallel drive system, hydraulic operation of all rear & center mounted implements. Mechanical steering, “ Speed Boss” speed control system, “Pro Pedal” engine throttle system & remote Cyclo-Pac air intake system.Specifications

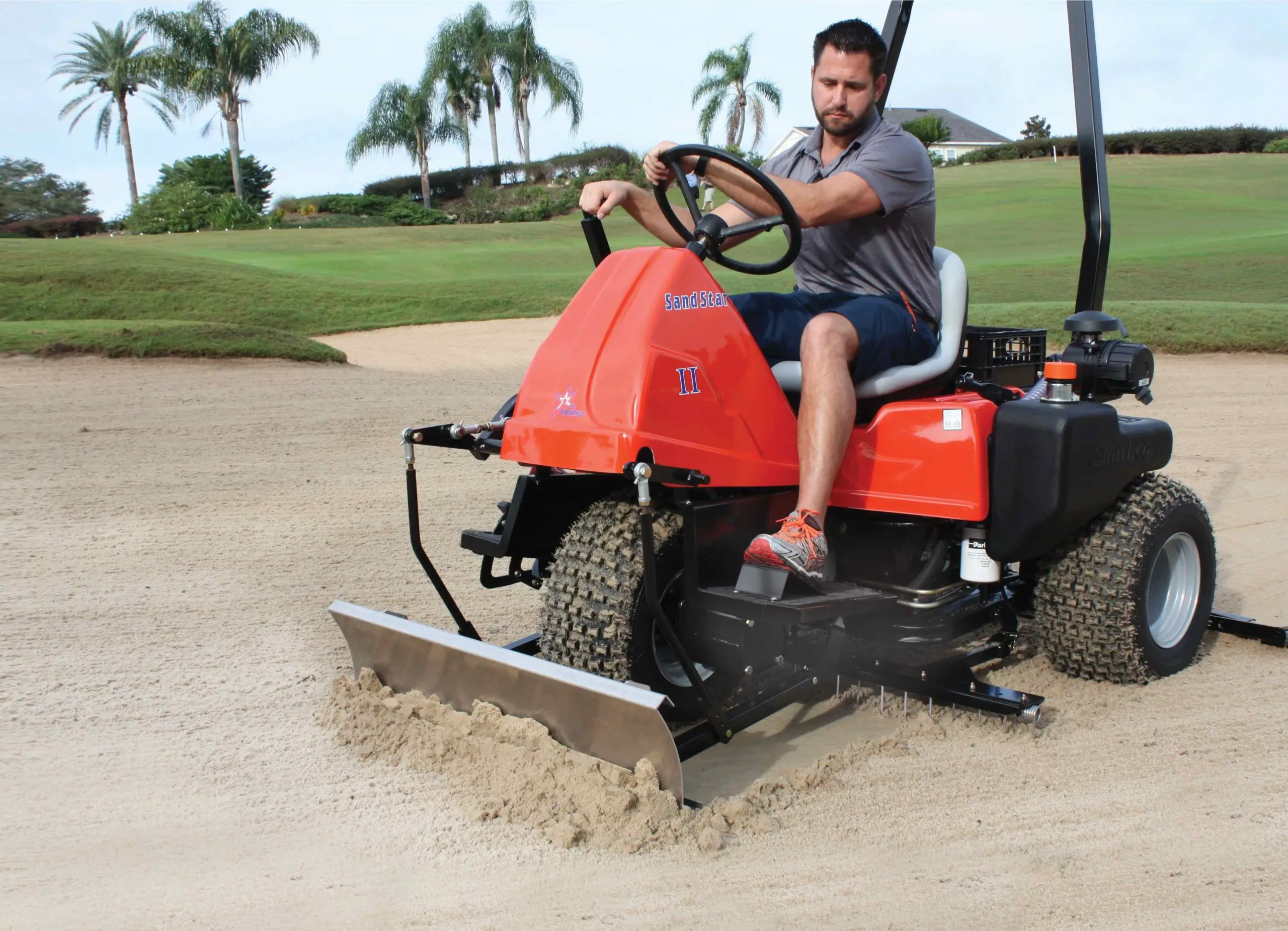

Sand Star II
18 hp Vanguard twin-cylinder gasoline engine, 2-3 wheel hydraulic parallel drive system thru selector valve, hydraulic operation of all rear & center mounted implements. Mechanical steering, “Speed Boss” speed control system, “Pro Pedal” engine throttle system & remote Cyclo-Pac air intake system.Specifications
Sand Star IV
18 hp Vanguard twin-cylinder gasoline engine, 3 wheel hydraulic series/parallel drive system, hydraulic operation of all rear & center mounted implements. Hydraulic power steering, “Speed Boss” speed control system, “Pro Pedal” engine throttle system & remote Cyclo-Pac air intake system.Specifications
Sand Star Diesel
18 hp Kubota D722 three-cylinder, liquid-cooled diesel engine, 3 wheel hydraulic series/parallel drive system, hydraulic operation of all rear & center mounted implements. Hydraulic power steering, “Speed Boss” speed control system, “Pro Pedal” engine throttle system & remote Cyclo-Pac air intake system.Specifications

Sand Star I Specifications

Sand Star I Specifications

IMPERIAL
METRIC
ENGINE
TypeVanguard V-twin air cooled
Displacement29.3 cu.in.
Rated Horsepower16 hp
Air CleanerEngine mount and remote cyclonic
CoolingAir-Cooled
LubricationFull Pressurized
Oil FilterFull Flow, Spin on type
Electrical System16 amp, with 12V 300 CCA battery, fuse protected
Fuel Capacity5 gallons
TRACTION DRIVE
Traction SystemVariable displacement hydraulic pump; individual hydraulic wheel motors on rear.
Hydraulic System5 gallons
Hydraulic CoolingFull flow filter with oil cooler
Tires, Brakes and Steering
Tires22 – 11 x 10.0 Knobby Tire
Service BrakesHydrostatic
Parking BrakeHand operated, 8” drum type
SteeringManual chain drive front wheel steering
SPEED
Transport0-12 mph
Reverse0-5 mph
WEIGHTS AND DIMENSIONS
Weight875 lbs
Length68”
Width58”
Height52"
Ground Clearance5.5” – 7”
Wheelbase42”

Sand Star II Specifications

Sand Star II Specifications

IMPERIAL
METRIC
ENGINE
TypeVanguard V-twin air cooled
Displacement34.78 cu.in.
Rated Horsepower18 hp
Air CleanerEngine mount and remote cyclonic air intake
CoolingAir-Cooled
LubricationFull Pressurized
Oil FilterFull Flow, Spin on type
Electrical System16 amp, with 12V 300 CCA battery, fuse protected
Fuel Capacity5 gallons
TRACTION DRIVE
Traction SystemVariable displacement hydraulic pump; individual hydraulic wheel motors on rear.
Hydraulic System5 gallons
Hydraulic CoolingFull flow filter with oil cooler
Tires, Brakes and Steering
Tires22 – 11 x 10.0 Knobby Tire
Service BrakesHydrostatic
Parking BrakeHand operated, 8” drum type
SteeringManual chain drive front wheel steering
SPEED
Transport0-12 mph
Reverse0-5 mph
WEIGHTS AND DIMENSIONS
Weight915 lbs
Length68”
Width58”
Height52"
Ground Clearance5.5” – 7”
Wheelbase42”

Sand Star IV Specifications

Sand Star IV Specifications

IMPERIAL
METRIC
ENGINE
TypeVanguard V-twin air cooled
Displacement34.78 cu.in.
Rated Horsepower18 hp
Air CleanerEngine mount and remote cyclonic air intake
CoolingAir-Cooled
LubricationFull Pressurized
Oil FilterFull Flow, Spin on type
Electrical System16 amp, with 12V 300 CCA battery, fuse protected
Fuel Capacity5 gallons
TRACTION DRIVE
Traction SystemVariable displacement hydraulic pump. Series Parallel drive to rear and hydraulic motor on front.
Hydraulic System5 gallons
Hydraulic CoolingFull flow filter with oil cooler
Tires, Brakes and Steering
Tires22 X 11 - 10.0 Knobby Tire
Service BrakesHydrostatic
Parking BrakeHand operated, 8” drum type
SteeringHydraulic steering
SPEED
Transport0-12 mph
Reverse0-5 mph
WEIGHTS AND DIMENSIONS
Weight915 lbs
Length68”
Width58”
Height52"
Ground Clearance5.5” – 7”
Wheelbase42”

Sand Star V Diesel Specifications

Sand Star V Diesel Specifications

IMPERIAL
METRIC
ENGINE
TypeKubota® D722 3-cylinder, liquid cooled
Displacement43.88 cu.in.
Rated Horsepower18 hp
Air CleanerEngine mount and remote cyclonic air intake
CoolingPressurized, sealed cooling system
LubricationFull Pressurized
Oil FilterFull Flow, Spin on type
Electrical System16 amp, with 12V 300 CCA battery, fuse protected
Fuel Capacity5 gallons
TRACTION DRIVE
Traction SystemVariable displacement hydraulic pump. Series Parallel drive to rear and hydraulic motor on front.
Hydraulic System5 gallons
Hydraulic CoolingFull flow filter with oil cooler
Tires, Brakes and Steering
Tires22 - 11 X 10.0 Knobby Tire
Service BrakesHydrostatic
Parking BrakeHand operated, 8” drum type
SteeringHydraulic steering
SPEED
Transport0-12 mph
Reverse0-5 mph
WEIGHTS AND DIMENSIONS
Weight1020 lbs
Length68”
Width58”
Height52"
Ground Clearance5.5” – 7”
Wheelbase42”
